BorexStroke:?15 x5.4mm
Max.Power Rating:?Up to 3.7hp/2.7kw
Working Pressure:?138Bar/2000psi
Max.Flow Rate:?9.4Lpm/2.5Gpm
Max.Input Rpm:?3400r/min
Head Material:?Brass Forged
Overall Dimension:?22x21x24cm
Shipping Weight:?4.7kgs

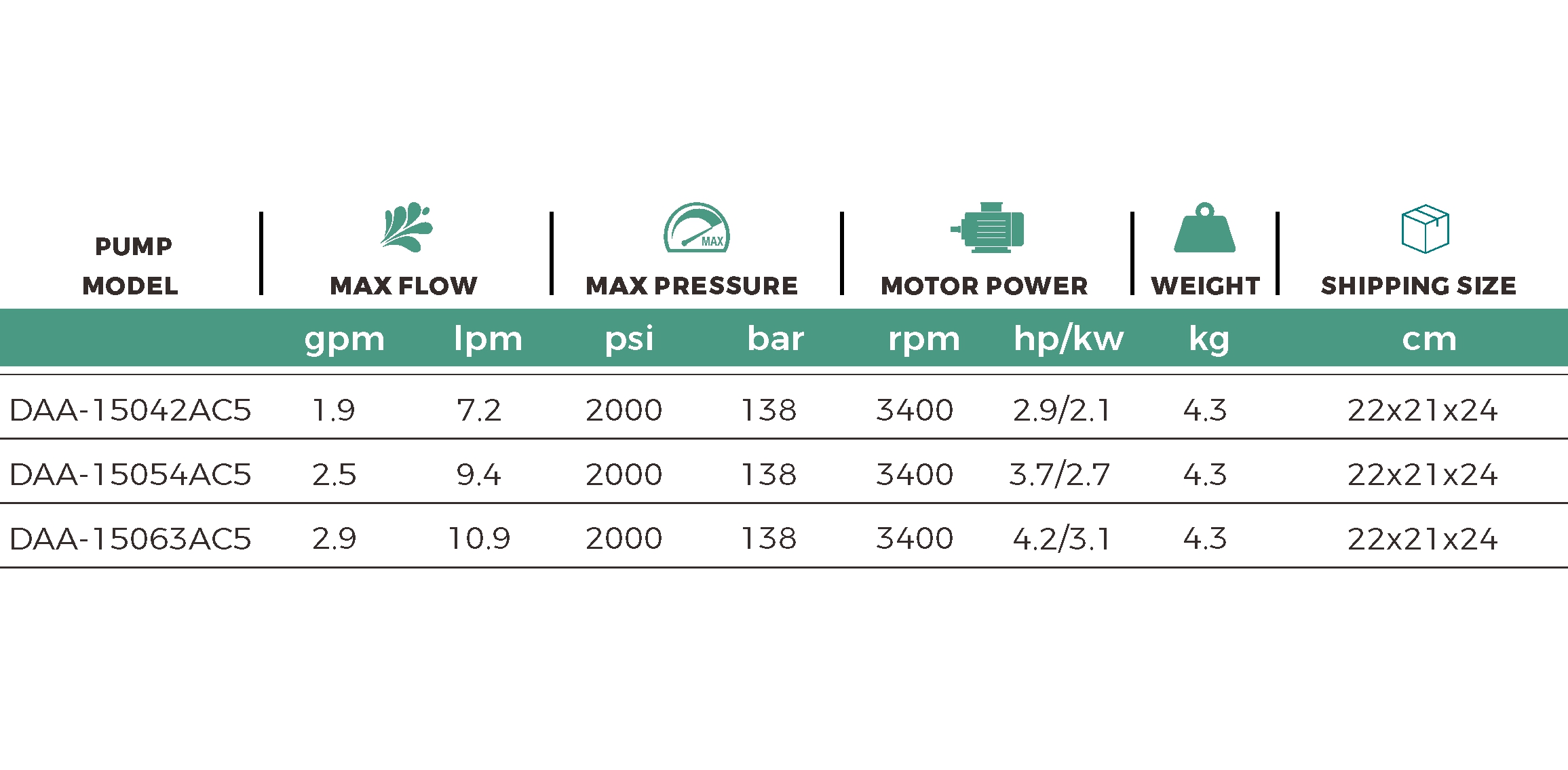

| Pump Model: | DAA-15054AC5 | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 5.4mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | AC Version,Motor Direct Drive | |
| Flange Type: | AC5(Fit for Motor 2.7kw) | |
| Shaft Dia.: | Hollow shaft 5/8in | |
| Max Input POWER: | 3.7hp/2.7kw | |
| Max Input RPM: | 3400RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 22x21x24cm | |
| Shipping Weight.: | 4.7kgs | |
| Application: | High Pressure Water | |
