BorexStroke:?13 x7.1mm
Max.Power Rating:?Up to 6.5hp
Working Pressure:?179Bar/2600psi
Max.Flow Rate:?9.6Lpm/2.5Gpm
Max.Input Rpm:?3400r/min
Head Material:?Brass Forged
Overall Dimension:?22x21x24cm
Shipping Weight:?4.0kgs

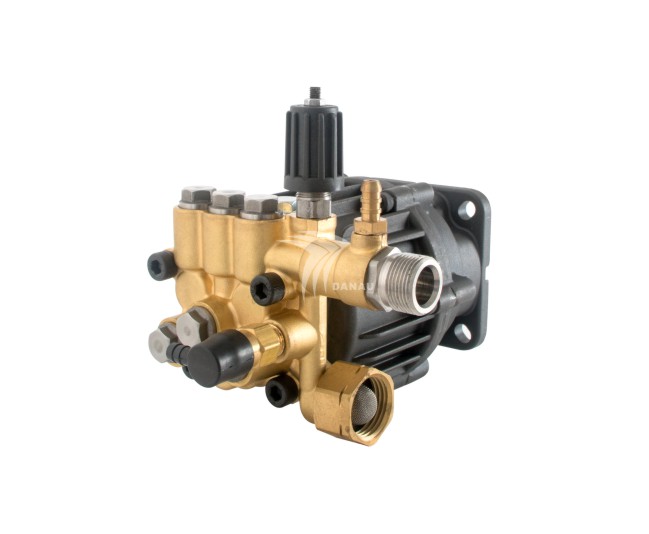

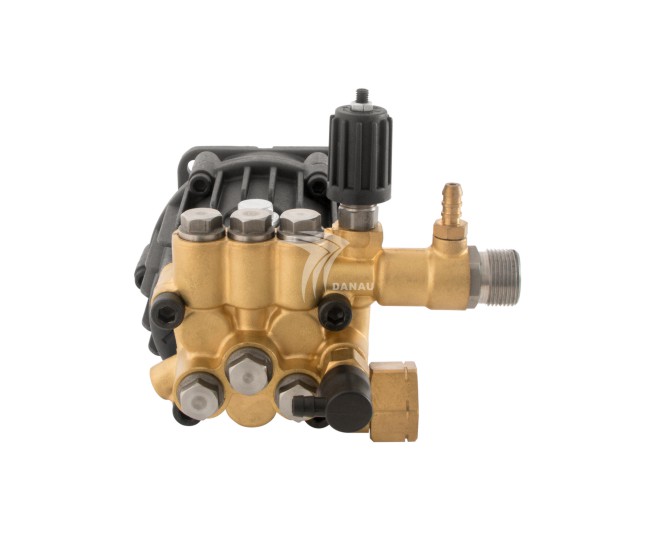

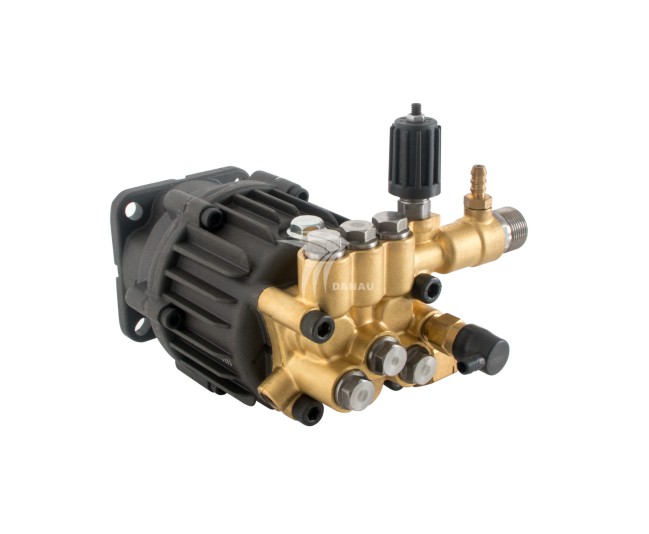

| Pump Model: | DAC-13071A | |
| Bore/Plunger Dia.: | 13mm | |
| Stroke: | 7.1mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | A Version,Engine Direct Drive | |
| Flange Type: | A(Fit for Engine 6.5hp) | |
| Shaft Dia.: | Hollow shaft 3/4in,19.05mm | |
| Max Input POWER: | 6.5hp | |
| Max Input RPM: | 3400RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 22x21x24cm | |
| Shipping Weight.: | 4.0kgs | |
| Application: | High Pressure Water | |
