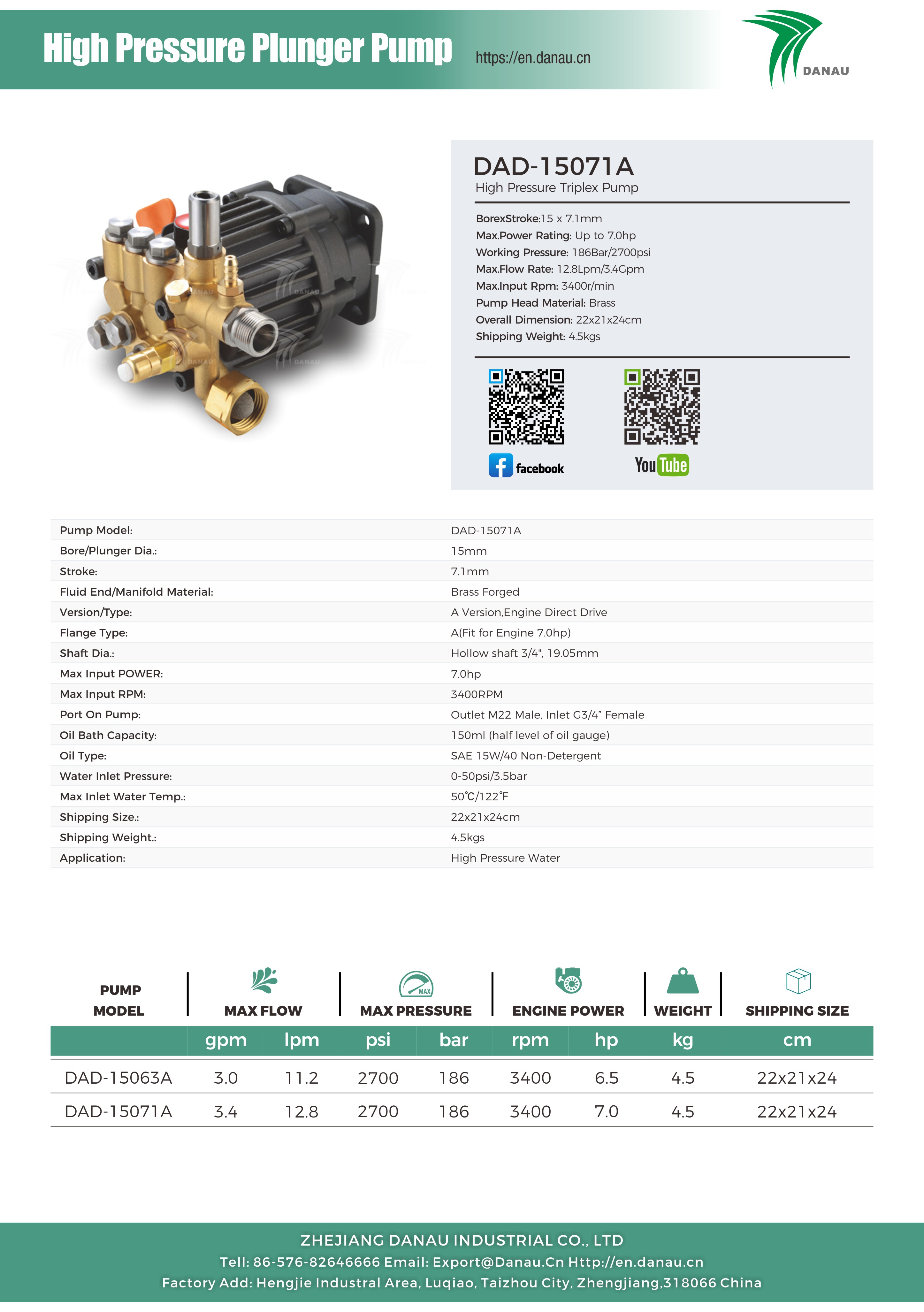

BorexStroke:?15 x7.1mm
Max.Power Rating:?Up to 7.0hp
Working Pressure:?186Bar/2700psi
Max.Flow Rate:?12.8Lpm/3.4Gpm
Max.Input Rpm:?3400r/min
Head Material:?Brass Forged
Overall Dimension:?22x21x24cm
Shipping Weight:?4.5kgs
| Pump Model: | DAD-15071A | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 7.1mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | A Version,Engine Direct Drive | |
| Flange Type: | A(Fit for Engine 7.0hp) | |
| Shaft Dia.: | Hollow shaft 3/4in,19.05mm | |
| Max Input POWER: | 7.0hp | |
| Max Input RPM: | 3400RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 22x21x24cm | |
| Shipping Weight.: | 4.5kgs | |
| Application: | High Pressure Water | |
