BorexStroke:?15 x 7mm
Max.Power Rating:?Up to 4.0Kw
Working Pressure:?186Bar/2700psi
Max.Flow Rate:?10.8Lpm/2.8Gpm
Max.Input Rpm:?2900r/min
Head Material:?Brass forged
Overall Dimension:?32.5x30.5x24cm
Shipping Weight:?8.0kgs

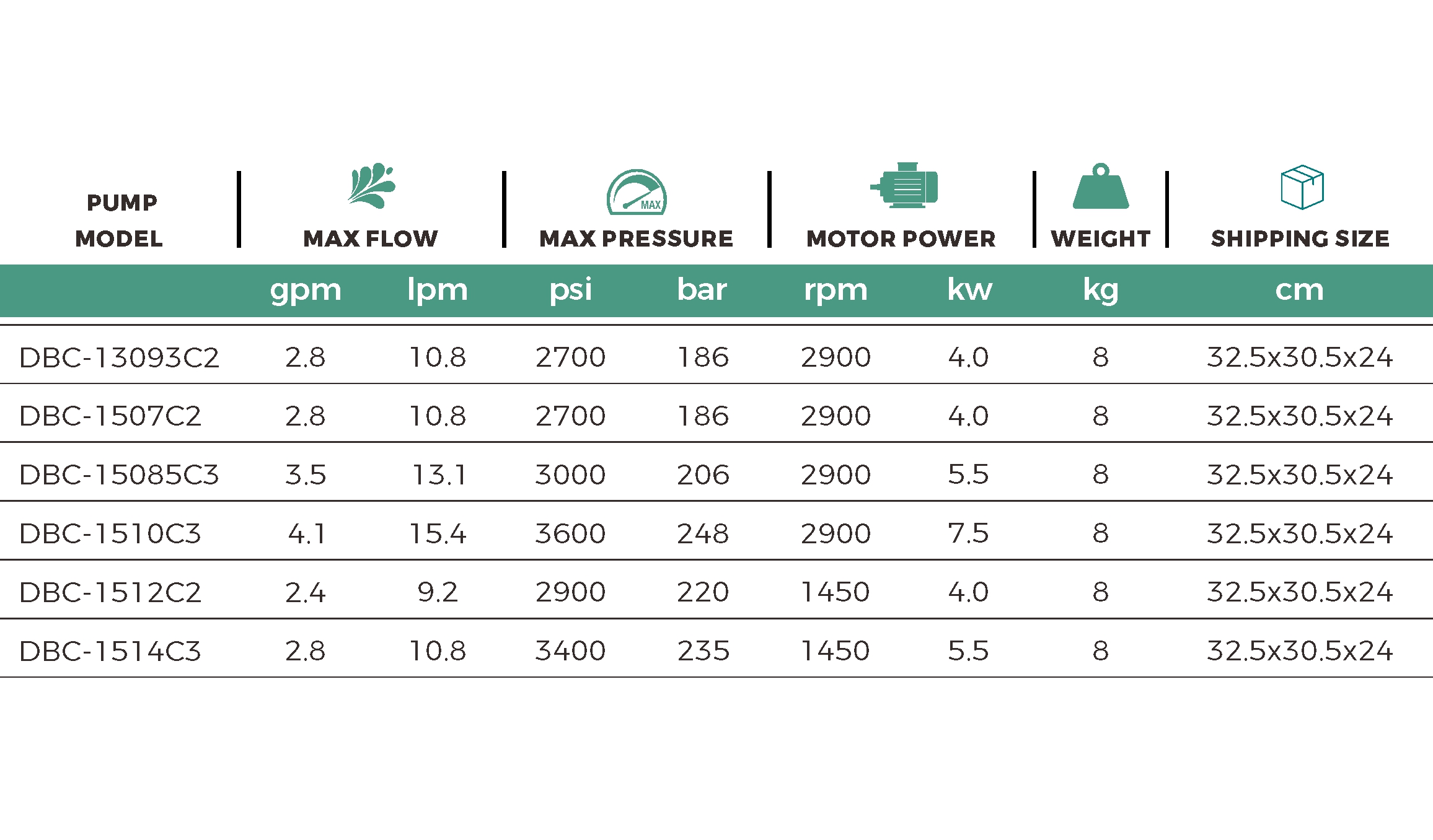

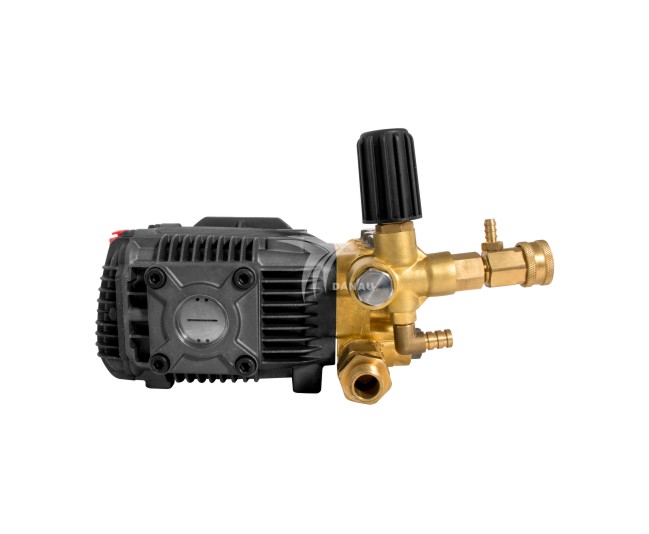

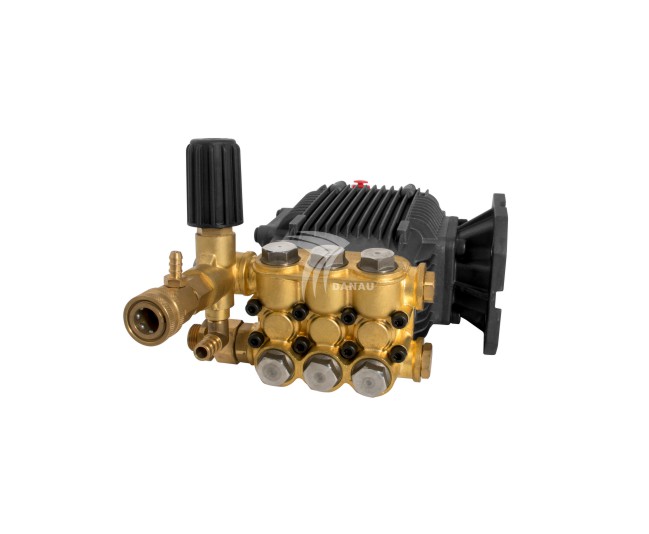

| Pump Model: | DBC-1507C2 | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 7mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | C Version, Motor Direct Drive | |
| Flange Type: | C2 (Fit for Motor 4.0kw) | |
| Shaft Dia.: | Hollow Shaft 24mm/28mm | |
| Max Input POWER: | 4.0kw | |
| Max Input RPM: | 2900RPM | |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 32.5x30.5x24cm | |
| Shipping Weight.: | 8.0kgs | |
| Application: | High Pressure Water | |
