BorexStroke:?18 x 21mm
Max.Power Rating:?Up to 24hp
Working Pressure:?220Bar/5000psi
Max.Flow Rate:?25Lpm/6.6Gpm
Max.Input Rpm:?1560-3400r/min
Head Material:?Brass forged
Overall Dimension:?43x41x26cm
Shipping Weight:?18kgs

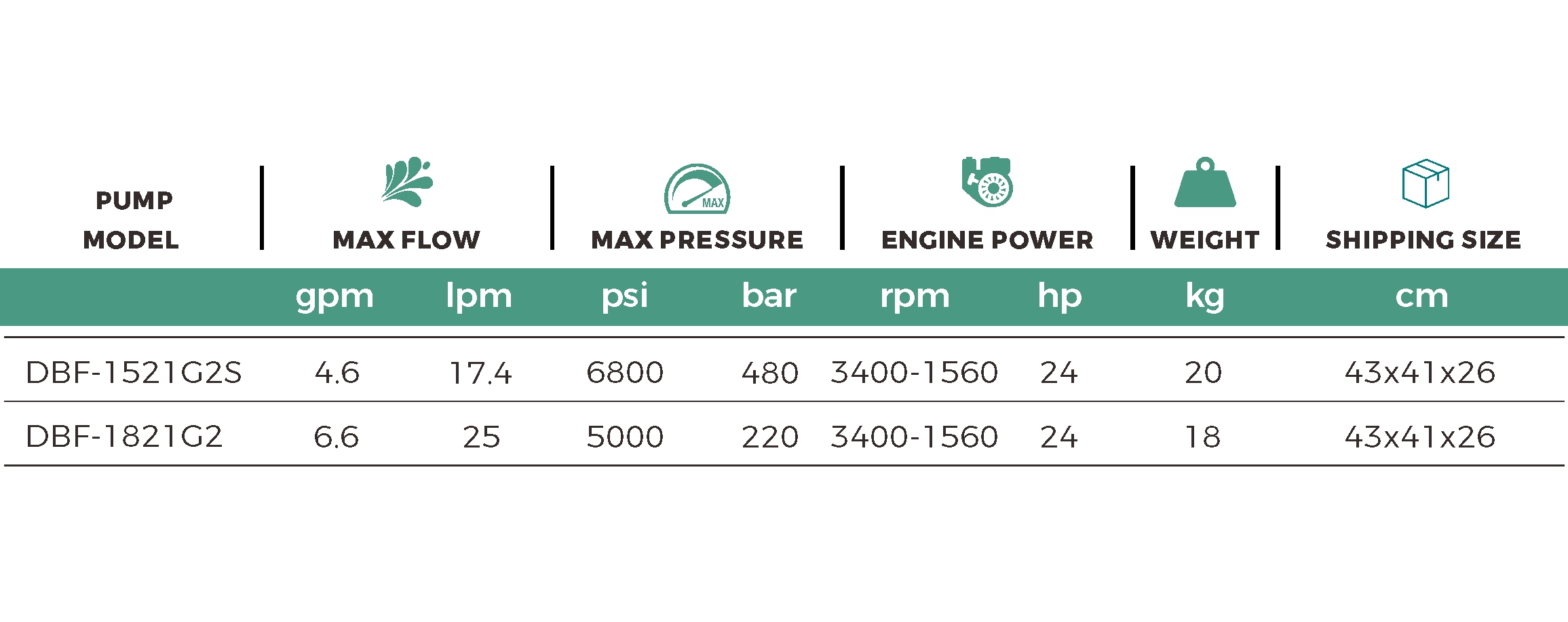

| Pump Model: | DBF-1821G2 | |
| Bore/Plunger Dia.: | 18mm | |
| Stroke: | 21mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | G2 Version, Gearbox, Engine Direct Drive | |
| Flange Type: | G2(fit for engine 24hp) | |
| Shaft Dia.: | Male shaft 1", 25.4mm | |
| Max Input POWER: | 24hp | |
| Max Input RPM: | 1560-3400RPM |
|
| Port On Pump: | Outlet G3/8” Female, Inlet G3/4” Female | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Unloader(4#):Inlet/Outlet:3/8”Female,bypass 3/8”Female;Unloader(5#):Inlet/Outlet:1/2”Female,bypass 1/2”Female;Unloader(12#):Inlet/Outlet:1/2”Female,bypass 1/2”Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 43x41x26cm | |
| Shipping Weight.: | 18kgs | |
| Application: | High Pressure Water | |
