BorexStroke:?28 x 21mm
Max.Power Rating:?Up to 18.5kw
Working Pressure:?150Bar/2200psi
Max.Flow Rate:?56.2Lpm/14.9Gpm
Max.Input Rpm:?1450r/min
Head Material:?Stainless Steel
Overall Dimension:?34.5x30x22cm
Shipping Weight:?16kgs

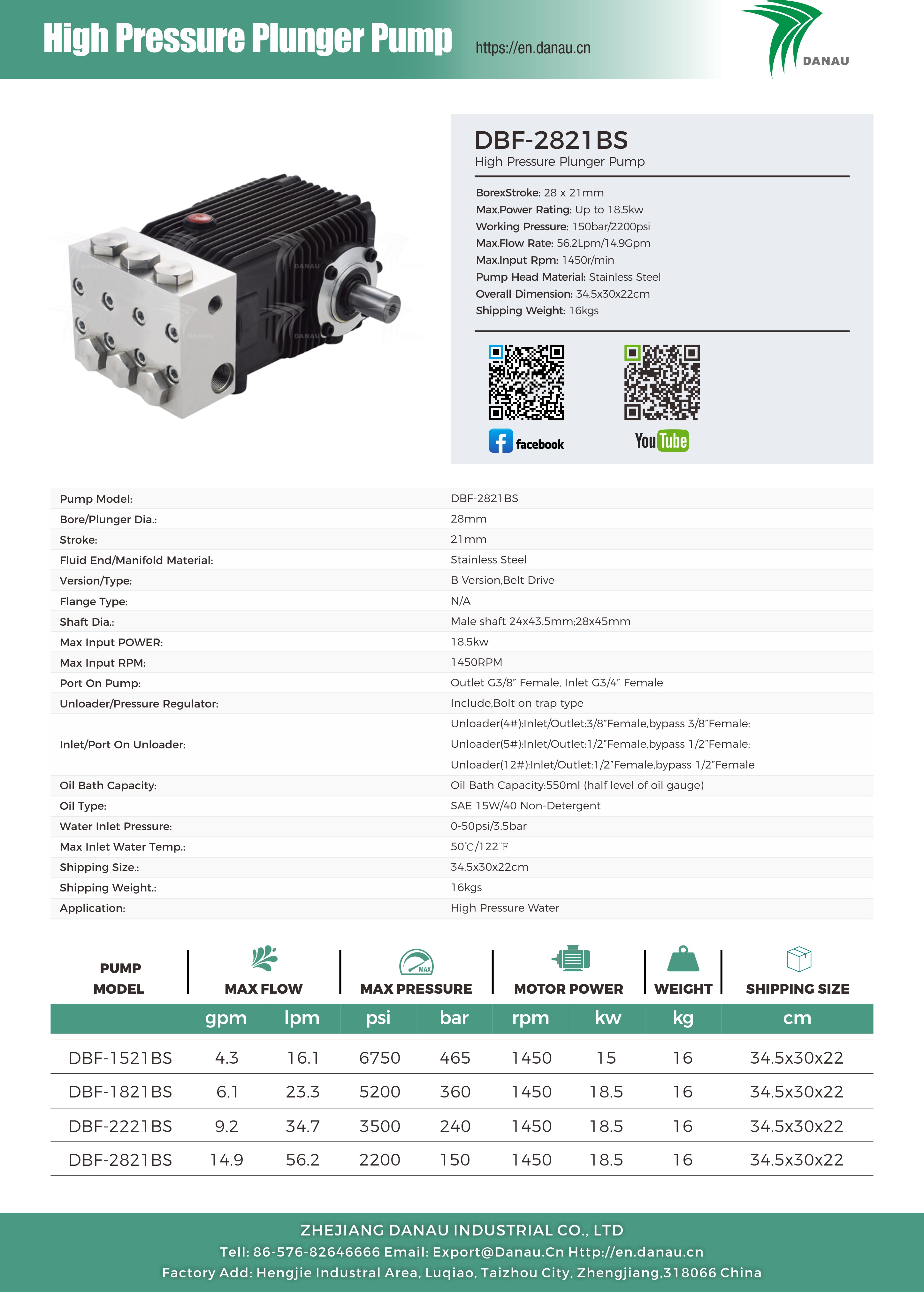

| Pump Model: | DBF-2821BS | |
| Bore/Plunger Dia.: | 28mm | |
| Stroke: | 21mm | |
| Fluid End/Manifold Material: | Stainless Steel |
|
| Version/Type: | B Version,Belt Drive | |
| Flange Type: | N/A | |
| Shaft Dia.: | Male shaft 24x43.5mm;28x45mm | |
| Max Input POWER: | 18.5kw | |
| Max Input RPM: | 1450RPM | |
| Port On Pump: | Outlet G3/8” Female, Inlet G3/4” Female | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Unloader(4#):Inlet/Outlet:3/8”Female,bypass 3/8”Female;Unloader(5#):Inlet/Outlet:1/2”Female,bypass 1/2”Female;Unloader(12#):Inlet/Outlet:1/2”Female,bypass 1/2”Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 34.5x30x22cm | |
| Shipping Weight.: | 16kgs | |
| Application: | High Pressure Water | |
