BorexStroke:?18 x 50mm
Max.Power Rating:?Up to 50HP
Working Pressure:?600Bar/8700psi
Max.Flow Rate:?38Lpm/10Gpm
Max.Input Rpm:?1000r/min
Head Material:?Stainless steel 420
Overall Dimension:?58x40x28cm
Shipping Weight:?66kgs

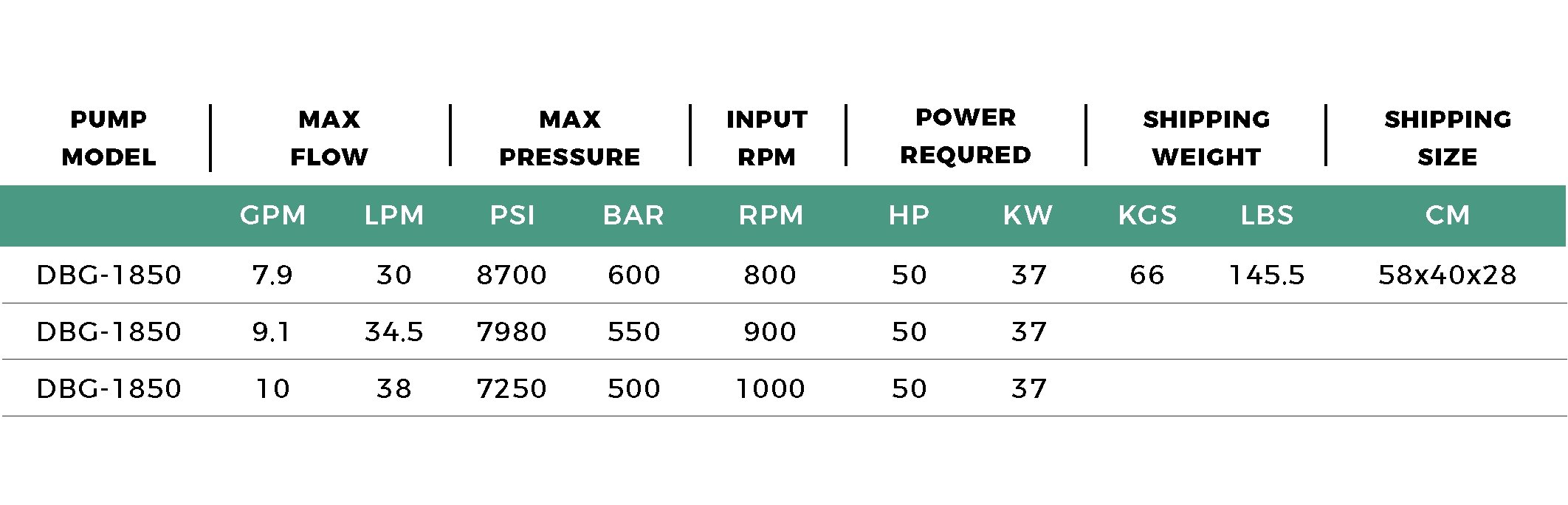

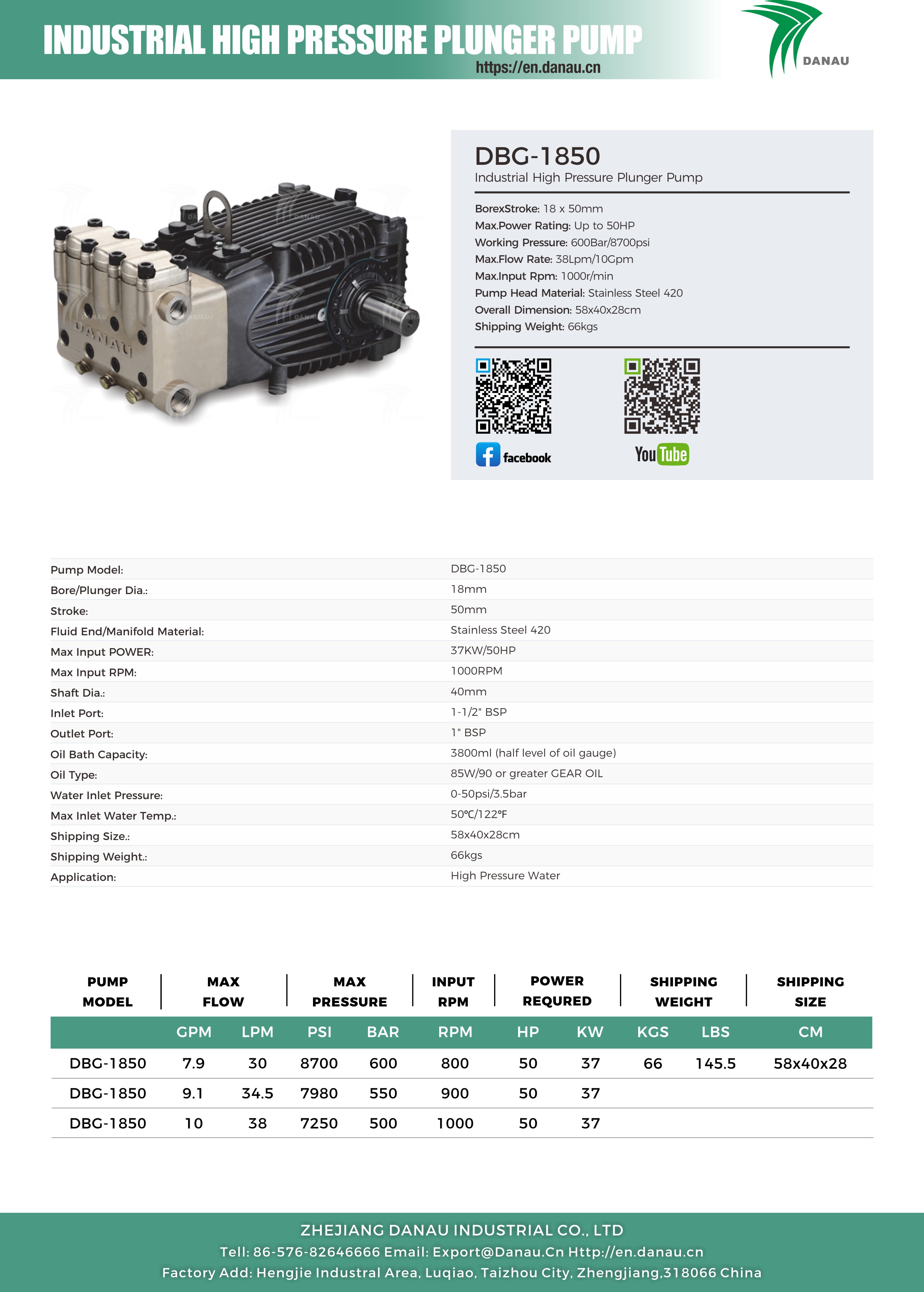

| Pump Model: | DBG-1850 | |
| Bore/Plunger Dia.: | 18mm | |
| Stroke: | 50mm | |
| Fluid End/Manifold Material: | Stainless steel 420 | |
| Fluid End Material Options: | Die-cast aluminum alloy, anodized. |
|
| Max Input POWER: | 37KW/50HP | |
| Max Input RPM: | 1000RPM | |
| Shaft Dia.: | 40mm | |
| Inlet Port: | 1-1/2" BSP | |
| Outlet Port: | 1" BSP | |
| Oil Bath Capacity: | 3800ml (half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 58x40x28cm | |
| Shipping Weight.: | 66kgs | |
| Application: | High Pressure Water | |
