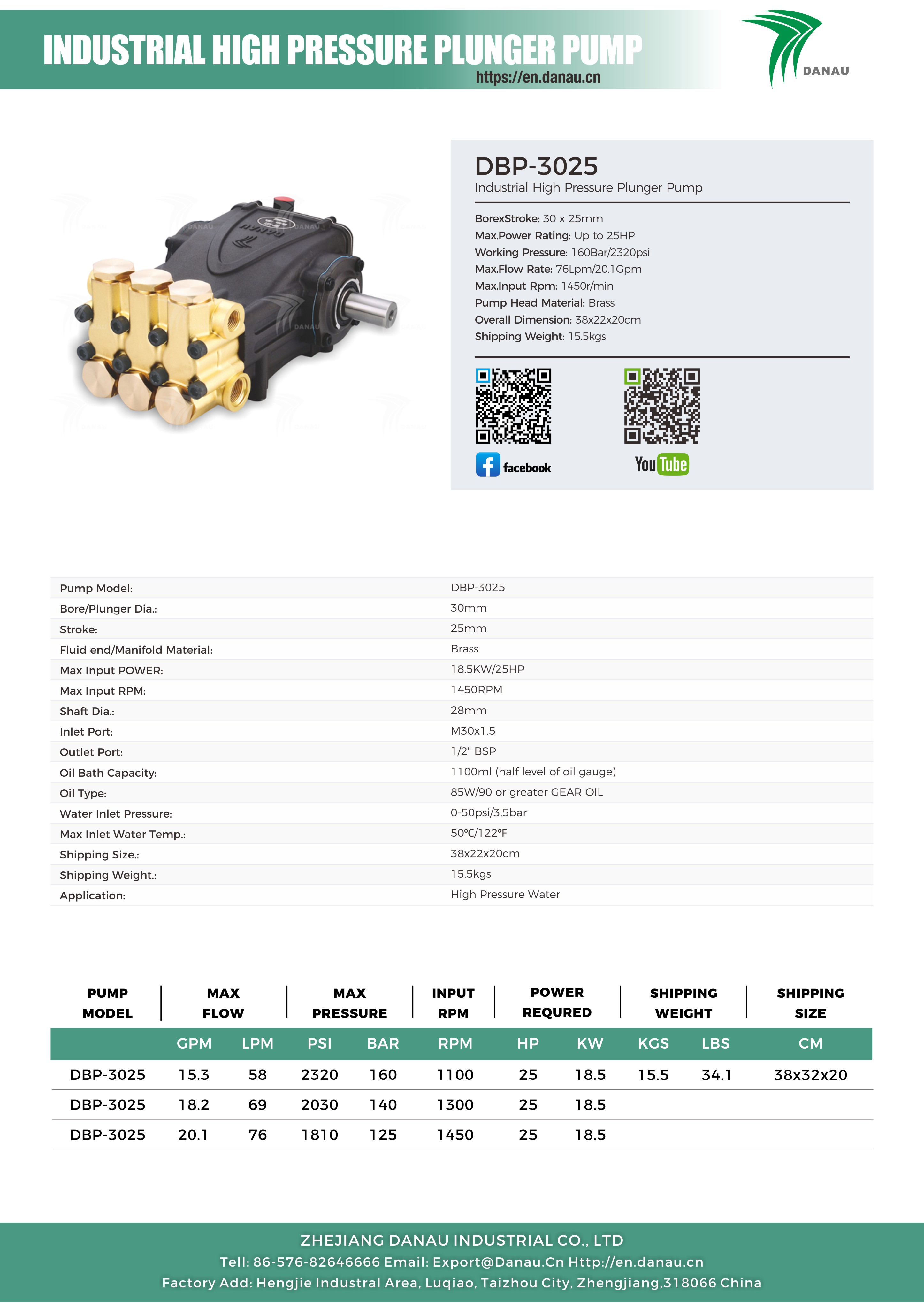

BorexStroke:?30 x 25mm
Max.Power Rating:?Up to 25HP
Working Pressure:?160Bar/2320psi
Max.Flow Rate:?76Lpm/20.1Gpm
Max.Input Rpm:?1450r/min
Pump Head Material:?Brass
Overall Dimension:?38x22x20cm
Shipping Weight:?15.5kgs

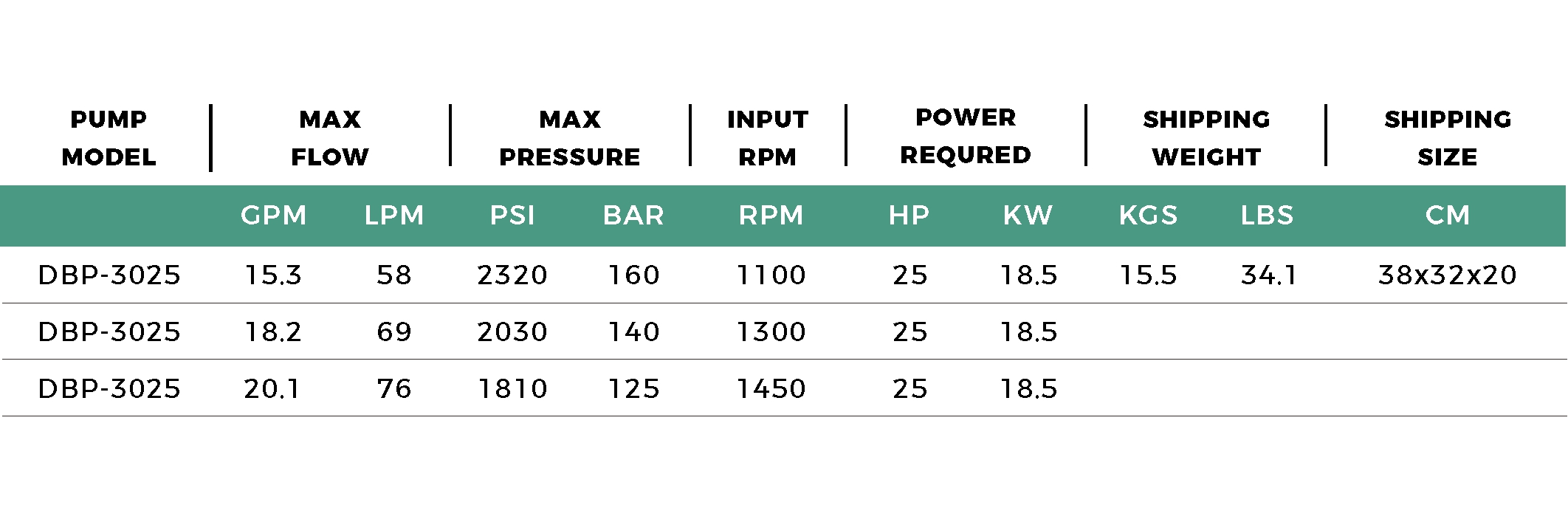

| Pump Model: | DBP-3025 | |
| Bore/Plunger Dia.: | 30mm | |
| Stroke: | 25mm | |
| Fluid end/Manifold Material: | Brass Forged | |
| Max Input POWER: | 18.5KW/25HP | |
| Max Input RPM: | 1450RPM | |
| Shaft Dia.: | 28mm | |
| Inlet Port: | M30x1.5 | |
| Outlet Port: | 1/2" BSP | |
| Oil Bath Capacity: | 1100ml (half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 38x22x20cm | |
| Shipping Weight.: | 15.5kgs | |
| Application: | High Pressure Water | |
