BorexStroke:?36 x 25mm
Max.Power Rating:?Up to 33HP
Working Pressure:?130Bar/1900psi
Max.Flow Rate:?110Lpm/29.1Gpm
Max.Input Rpm:?1450r/min
Head Material:?Nodular cast iron
Overall Dimension:?46.5x35x25cm
Shipping Weight:?45kgs

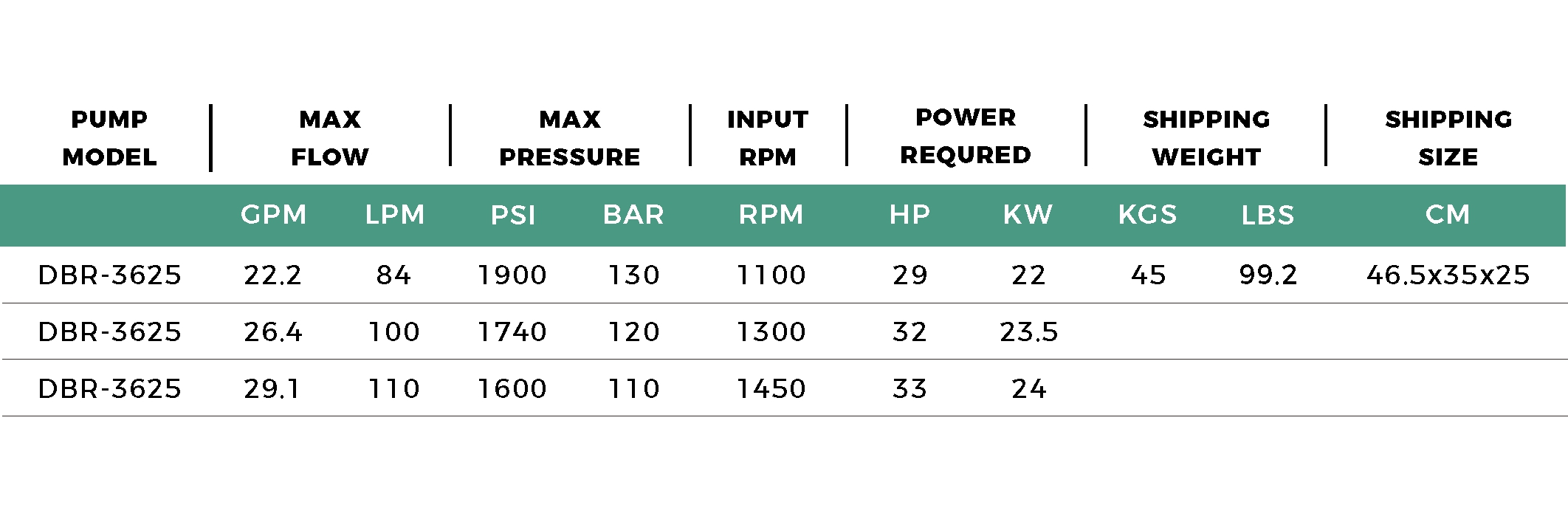

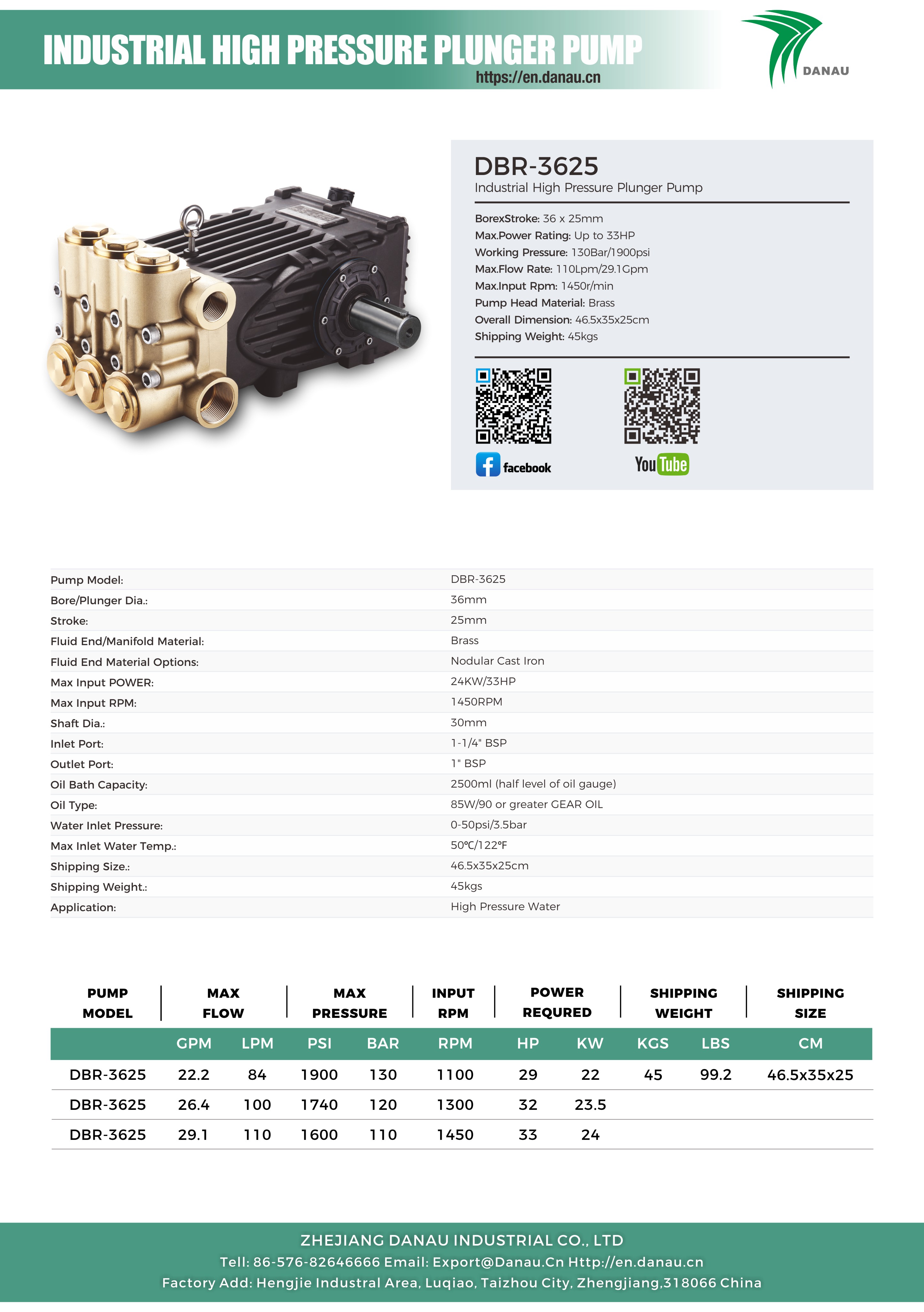

| Pump Model: | DBR-3625 | |
| Bore/Plunger Dia.: | 36mm | |
| Stroke: | 25mm | |
| Fluid End/Manifold Material: | Nodular Cast Iron | |
| Fluid End Material Options: | Brass Forged And Stainless Steel 316L, Duplex 2205 | |
| Max Input POWER: | 24KW/33HP | |
| Max Input RPM: | 1450RPM | |
| Shaft Dia.: | 30mm | |
| Inlet Port: | 1-1/4" BSP | |
| Outlet Port: | 1" BSP | |
| Oil Bath Capacity: | 2500ml (half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 46.5x35x25cm | |
| Shipping Weight.: | 45kgs | |
| Application: | High Pressure Water | |
