BorexStroke:?40 x 26mm
Max.Power Rating:?Up to 36HP
Working Pressure:?100Bar/1450psi
Max.Flow Rate:?142Lpm/37.5Gpm
Max.Input Rpm:?1450r/min
Head Material:?Nodular cast iron
Overall Dimension:?46.5x35x25cm
Shipping Weight:?45kgs

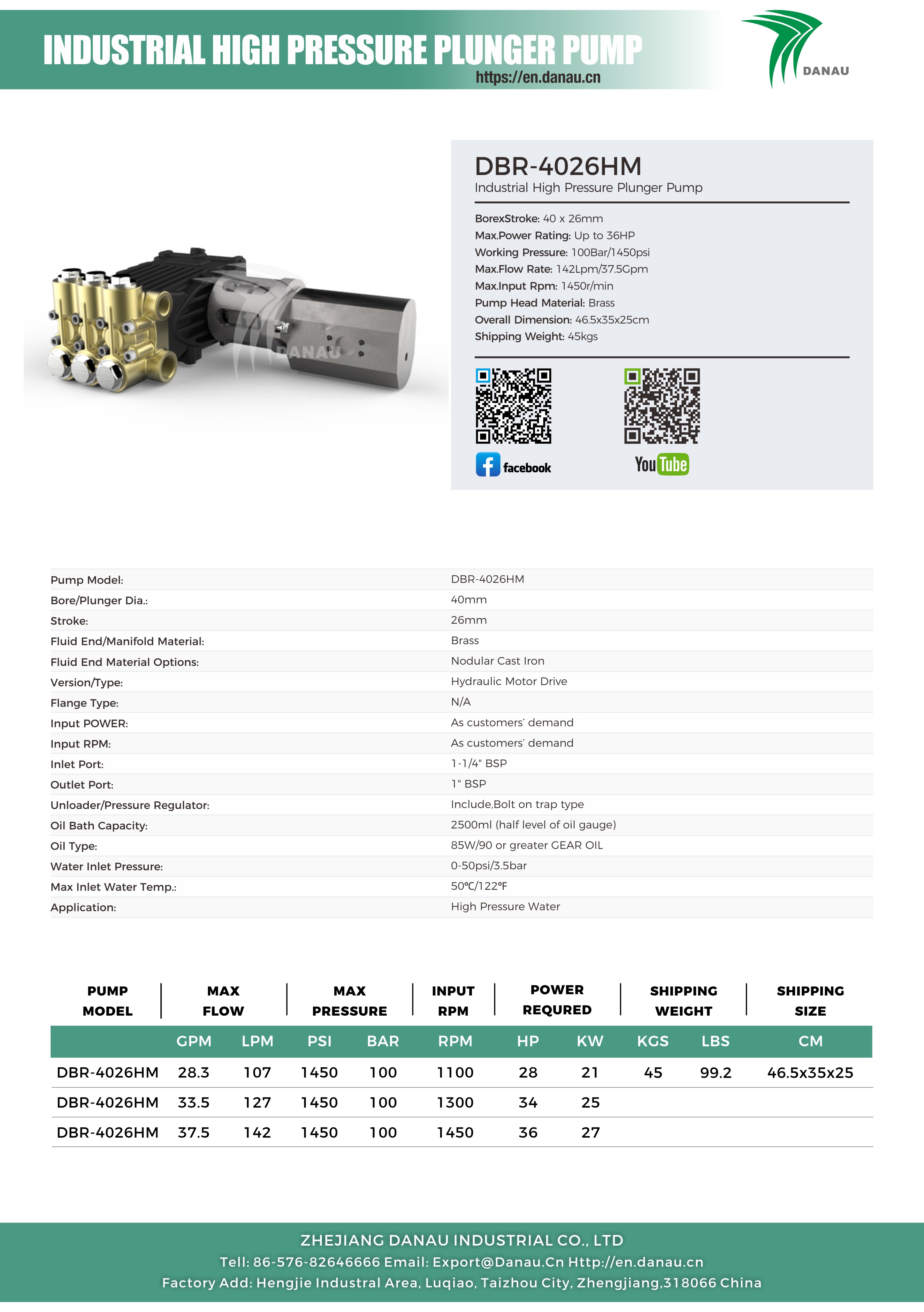

| Pump Model: | DBR-4026HM | |
| Bore/Plunger Dia.: | 40mm | |
| Stroke: | 26mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | Hydraulic Motor Drive | |
| Flange Type: | N/A | |
| Input POWER: | As customers’ demand? | |
| Input RPM: | As customers’ demand | |
| Inlet Port: | 1-1/4" BSP | |
| Outlet Port: | 1" BSP | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Oil Bath Capacity: | 2500ml (half level of oil gauge) | |
| Oil Type: | 85W/90 Or Greater Gear Oil | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Application: | High Pressure Water | |
